SurePath Emergency Lighting Test System

ADVANCED EMERGENCY LIGHTING TEST SYSTEM

SurePath

WIRED AND BLUETOOTH MESH WIRELESS EMERGENCY LIGHTING TEST SYSTEM

SurePath
SurePathBLE logo

SurePath and SurePathBLE are standalone Emergency Lighting test systems, providing testing and reporting to BS EN 62034.

The systems simplicity means the user can be assured that their Emergency Lighting installation is being routinely tested and monitored in accordance with BS EN 50172. The design and size of the innovative full colour touch screen makes setting up test schedules or checking test results very simple.

SurePath

Each SurePath and SurePathBLE panel is capable of connection to 128 devices. For larger installations, SureLink software can be deployed to provide a fully scalable system.

Once commissioned, the SureLink system will carry out function tests and duration tests automatically on scheduled dates and times. While everything is healthy the SurePath/SurePathBLE screen will remain blank unless touched in which case it will show the ‘tick’ screen indicating all is well.

In the event of a failure during a test, or if a battery/charger problem occurs, the screen will automatically come on with a warning triangle and, if selected during commissioning, the integral warning buzzer will also sound.

Operational features:

  • Password protected active functions
  • Commissioning data can be entered via the touch screen, a USB dongle or SureLink software
  • Devices can be addressed individually, by ‘Network’ or by ‘Group’
  • SurePath will automatically find replacement devices during maintenance
  • Automatic status notifications are logged in SurePath’s non-volatile memory and can be downloaded by USB or SureLink software
  • SurePath is IoT-ready

When the screen is active simple touch buttons are also enabled that allow easy access to any fault reports or a password protected engineer’s menu.

Alternatively, a SureLink enabled system can be configured to automatically notify a maintenance engineer of both the nature and location of any faults. These detailed system reports allow for a strategy of planned maintenance to be implemented.

SurePath and SurePathBLE panels comply with EN 61347-2-11.

SurePathBLE system

SurePathBLE is a Bluetooth wireless system. This provides great flexibility and is ideal for refurbishments and applications where easy expansion is important.

  • Integral Bluetooth antennae
  • Integral mains supply
  • Two Bluetooth Mesh networks (2 x 64 devices)
  • Commissioning made simple using Android App
  • Automatic addressing of replacement gear
  • Automatic fault indication to maintenance partner (optional)
  • IP addressable
  • Complies with EN 62386 DALI wifi standard
  • Screen branding to order
  • Simple operation
  • Routine function and duration tests
  • Detailed test results on screen
  • Automatic fault indication
  • Downloadable test data
  • Fault buzzer (software enabled)
  • Operates with multiple durations (60 mins, 90 mins, 180 mins etc)
  • Surface or recessed mounting
  • UK design, manufacture and software intellectual property

SurePathBLE is a system comprising of three core elements: a control panel, Bluetooth Gateway modules and SureLink networking software.

Gateway moduleGATEWAY MODULE

  • Convert DALI emergency luminaires into Bluetooth luminaires
  • Compact design (designed to fit in any emergency luminaire)
  • Suitable for use in any DALI compatible emergency luminaire

Android appANDROID APP

  • Handy commissioning tool
  • Convenient and portable

SurePath

SurePath is a hard-wired system. This ensures the most reliable connection and is ideal for new build applications and use in metal-clad structures.

  • Integral mains supply
  • Two DALI busses (2 x 64 devices)
  • Automatic addressing of replacement gear
  • Automatic fault indication to maintenance partner (optional)
  • IP addressable
  • Screen branding to order
  • Simple operation
  • BSI Tested
  • Complies with EN 62386 DALI standard
  • Routine function and duration tests
  • Detailed test results on screen
  • Automatic fault indication
  • Downloadable test data
  • Fault buzzer (software enabled)
  • Operates with multiple durations (60 mins, 90 mins, 180 mins etc)
  • Surface or recessed mounting
  • UK design, manufacture and software intellectual property

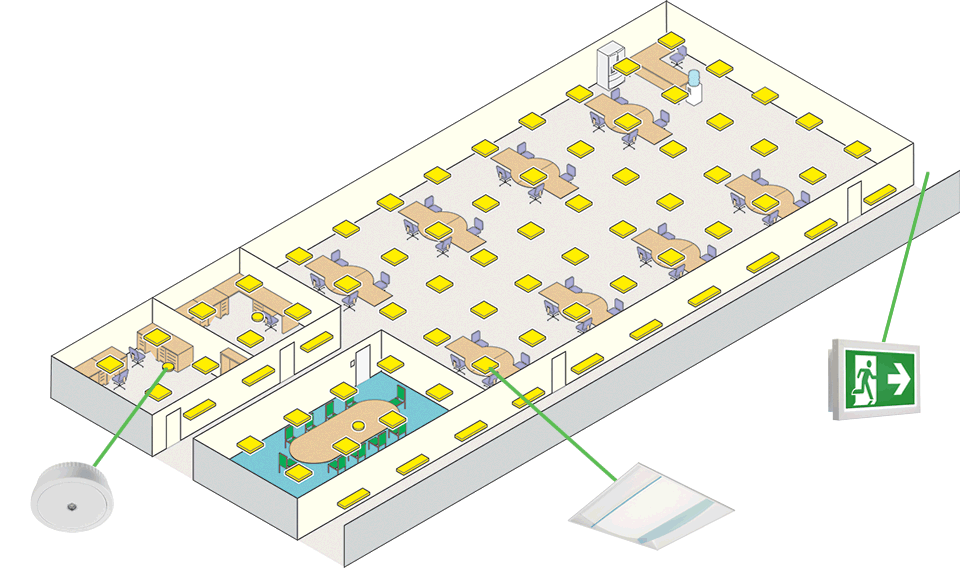

Typical small installation

(Single SurePath panel monitoring fixtures including dedicated emergency lighting, luminaires with emergency lighting operation and exit signs)

SurePath

SureLink – dedicated SurePath networking software

SureLink is dedicated PC software which allows for up to 50 SurePath panels to be seamlessly monitored and controlled across a network.

SureLink has been developed to provide a single coherent solution to manage the emergency lighting installations of larger estates.

SurePath
SurePathBLE brochure

SurePath/SurePathBLE brochure

CLICK HERE to download our SurePath range brochure (6pp, 3.5MB PDF).

Contact us to discuss your Emergency Lighting testing system requirements today.
