Signage

SignalLED

Exit Sign Luminaires (recessed and surface)

The SignalLED range of LED exit sign luminaires offer flexible mounting solutions in a choice of attractive, maintained packages.

The luminaires feature a unique method of fitting legend ‘screens’ onto the double-sided, acrylic blades. Legends are available in all common legend types and are supplied as ‘same type’ sets of two.

SignalLED luminaires offer Maintained operation as standard providing 3 hour duration. (Non-maintained operation is available by excluding a switched live supply). All emergency versions also offer 3 hour emergency lighting duration from integral high temperature Lithium Iron Phosphate (LiFePO₄) batteries.

All SignalLED luminaires comply with the relevant requirements of EN60598.2.22

Datasheet
CE Declaration of Conformity
UKCA Declaration of Conformity
SLD WSK NBG
SLD CBRK NBG
RLD NBG

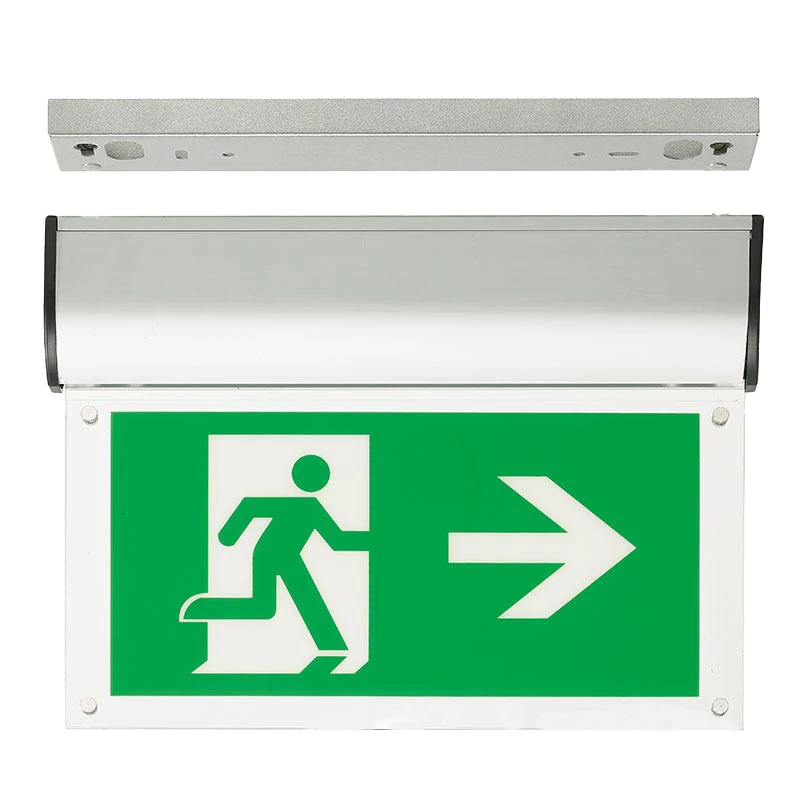

SUSPENDED/SURFACE VERSIONS (SLD)
The suspended SignalLED provide a 28 metre viewing distance, but are smaller than conventional exit signs. All units are supplied with integral Maintained emergency lighting control gear powering 15 high brightness white LEDs which clearly and evenly illuminate the safety sign legends.

The range of mounting brackets allow fixing direct to the ceiling, wall fixing (parallel or perpendicular to the wall) or suspended solutions (surface or wire). In all cases the fixing brackets retain the standard luminaire body via quick release spring clips or two quarter turn latches.

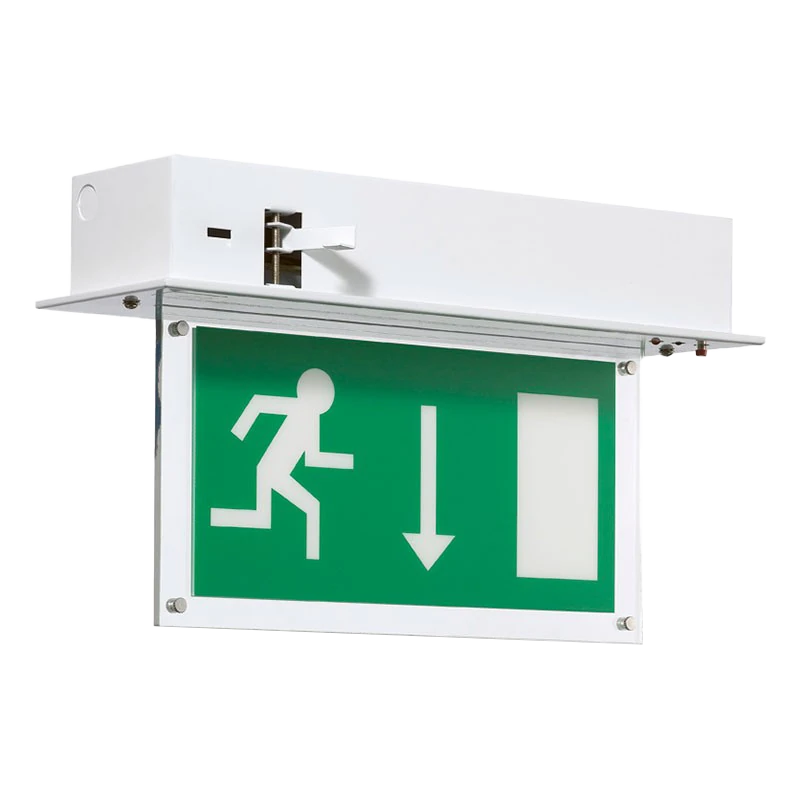

RECESSED VERSIONS (RLD)
Although recessed SignalLED luminaires have a similar appearance to conventional recessed exit signs these LED fittings are much smaller and make installations far more attractive.

The housing has adjustable arms to simplify installation into different thickness supporting surfaces and a white ceiling plate.

As with the suspended SignalLED luminaires the recessed versions are supplied with integral Maintained emergency lighting control gear powering 15 high brightness white LEDs which clearly and evenly illuminate the safety sign legends.

DALI/Self-Test Options:

SignalLED LED luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system.
