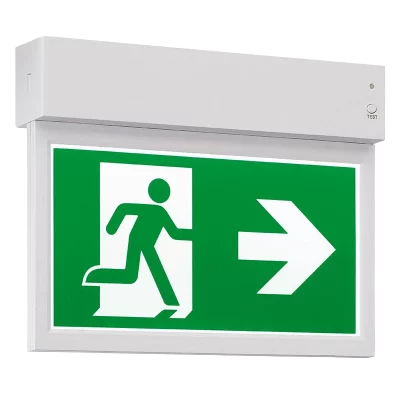

MexLITE – Fixed and Wire-Suspended LED Exit Sign

The ELP MexLITE range of high quality LED exit sign luminaires is perfectly suited to modern architectural environments and available in two sizes for 25m and 30m viewing distances.

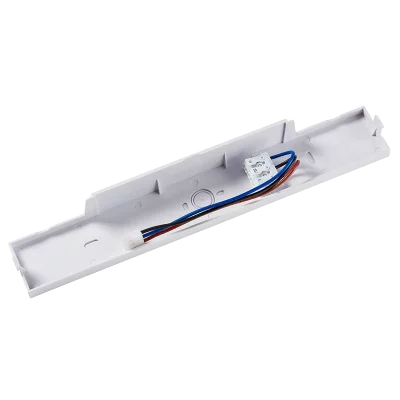

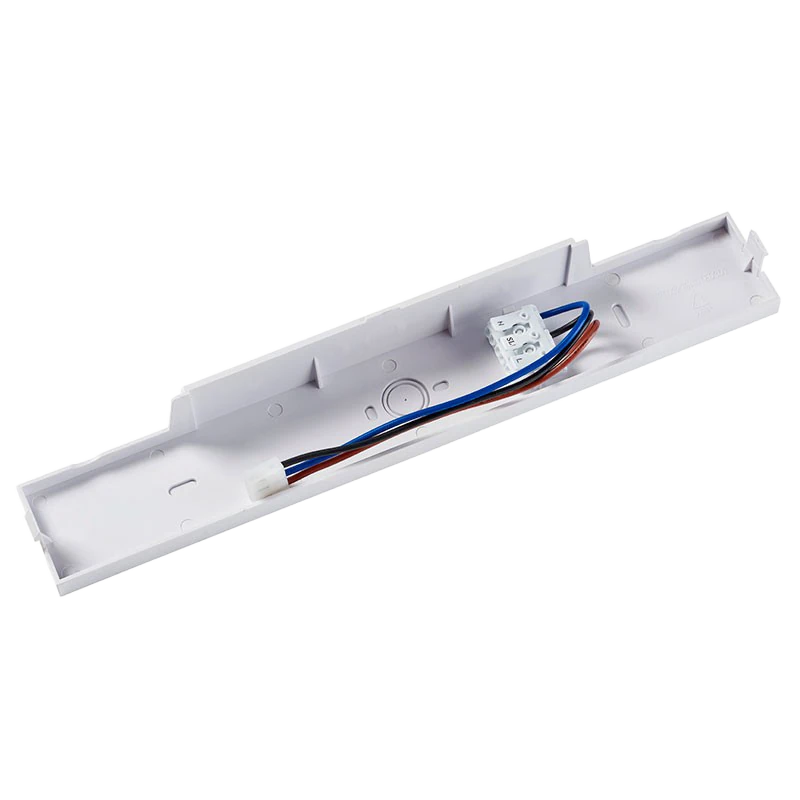

Offering ease of installation, these luminaires feature a first fix plate. The attractive slim body and legend plate then clips into position.

The safety sign legends can be fitted/changed on site by simply clicking the appropriate sign into the frame.

(NB: a complete set of EC & ISO legends are supplied with each luminaire).

The framed panel has a specially screen printed finish to ensure uniform illumination of the safety sign legend. Due to their slim design and different mounting options, MexLITE luminaires are ideal for integrating into new and existing installations.

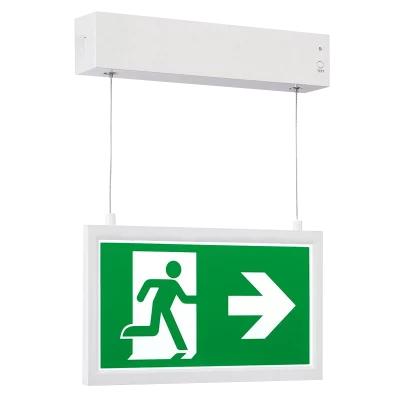

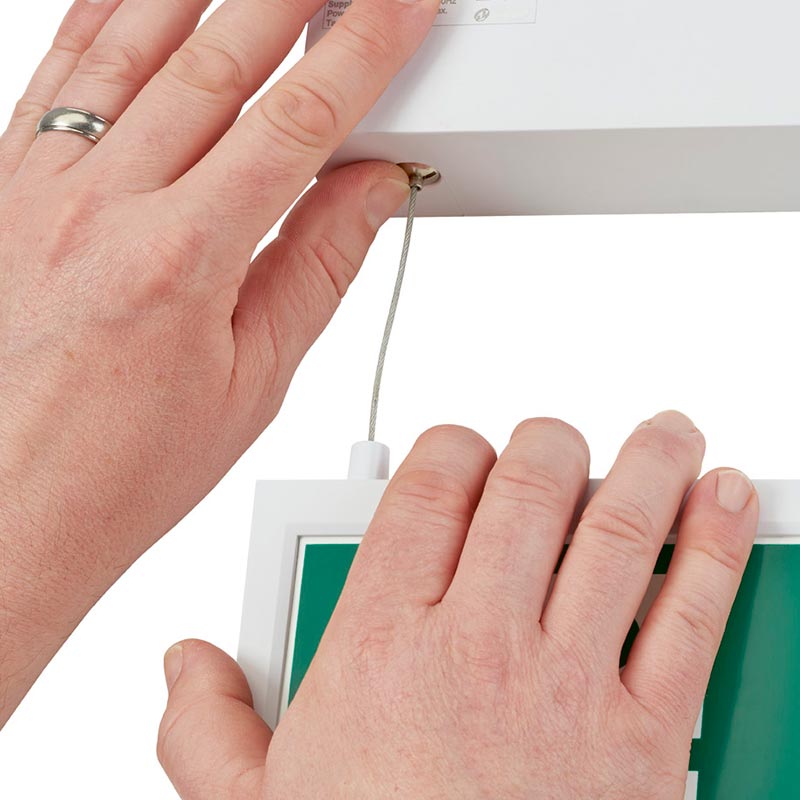

The MexLITE ESA09 and ESA11 can have the legend panel suspended at different levels by just slipping the wires through the locking clutch brushes. The SELV supply to the LEDs is fed through the suspension wires.

DALI / Self-Test Options:
The MexLITE luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system.

NB: Self-Test is available for all versions but DALI operation is only available for the larger sizes – ESA10 & ESA11.

DALI and Self-Test logos

Datasheet (PDF)
Register to download additional product data including LDT Files, Wiring Diagrams and Certificates of Conformity – CLICK HERE



Categories: ,

Description

MexLITE Exit Signs are suitable for Wall/Ceiling mounting and offer Wire Suspended versions.

Mounting is achieved via a first fix plate which has fixing holes suitable for wall or ceiling mounting. The Wire Suspended versions utilise parallel suspension wires that allow the height of the legend to be easily set by the use of two locking clutch bush mechanisms.

The MexLITE luminaires are available with mains only or Maintained emergency operation. (All emergency versions provide 3 hour duration).

Maintained versions can be used for standard switched mains lighting but will automatically provide emergency operation lighting in the event of a complete loss of normal mains supply. (Non-maintained operation is available by excluding a switched live supply).

MexLITE luminiares use the latest high efficiency, white LEDs, an energy efficient battery charger/driver circuit and 3.6V 900mAh Nickel Cadmium (NiCd) batteries.

The luminaires are designed to fully comply with the relevant parts of EN60598.2.22

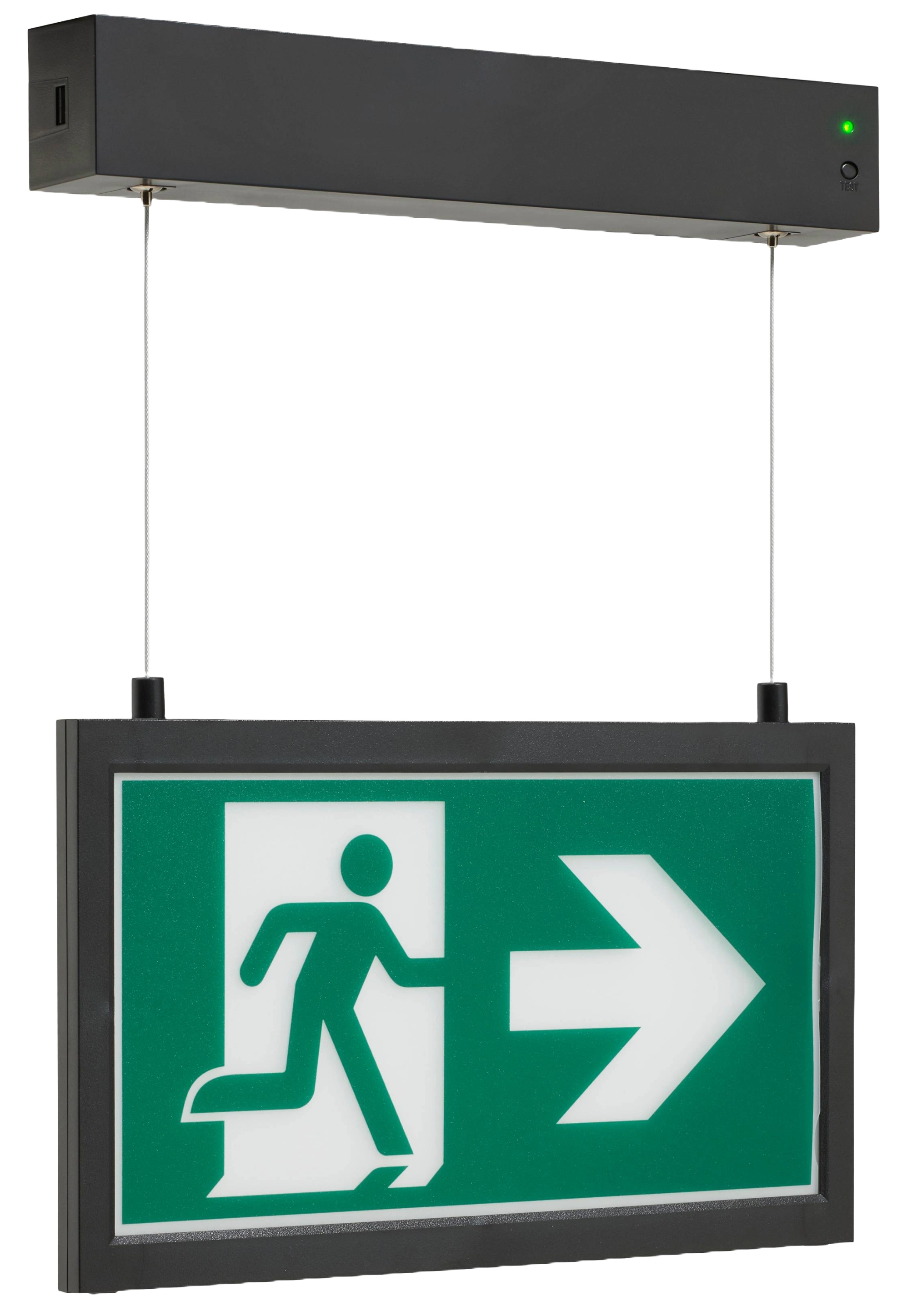

MexLITE Exit Sign with adjustable wire suspension

General Details

ProductLED Exit Sign (Fixed and Wire Suspended)
Light Source14 x white LEDs
Luminaire lumensN/A
Sign viewing distances25m (ESA08 and ESA09)
30m (ESA10 and ESA11)
ConstructionABS (flame retardant)
GeartrayFirst fix plate
DimensionsSee line drawings
Cable EntryTop and back (first fix plate)

General Specification

Light Source14 x white LEDs
Colour temperature4500K
Luminaire lumensN/A
IP RatingIP20
Ambient temperature (Ta)25°C
Insulation ClassClass II
Supply Voltage230V ~ 50Hz
Supply power (maintained)2.6W (ESA 08/09) / 3.1W (ESA 10/11)
Supply power (Non- maintained)0.8W
Charge power (typical)0.7W
Battery3.6V 900mAh NiCd
Weight2.5kg (max.)

Order Codes

Order CodesDescription
25m viewing distance
MXL/ESA08/M3Wall/Ceiling Mounted, Maintained, Switched Maintained, Non-Maintained, 3 hour with complete set of EC and ISO format Legend Panels (right/left/down/up)
MXL/ESA09/M3Wall/Ceiling Mounted with Wire Suspension, Maintained, Switched Maintained, Non-Maintained, 3 hour with complete set of EC and ISO format Legend Panels (right/left/down/up)
30m viewing distance
MXL/ESA10/M3Wall/Ceiling Mounted, Maintained, Switched Maintained, Non-Maintained, 3 hour with complete set of EC and ISO format Legend Panels (right/left/down/up)
MXL/ESA11/M3Wall/Ceiling Mounted with Wire Suspension, Maintained, Switched Maintained, Non-Maintained, 3 hour with complete set of EC and ISO format Legend Panels (right/left/down/up)
OPTIONS:/DALIDALI or Self-Test emergency operation
NB: Only available on MXL/ESA10 and MXL ESA11 (30m viewing)
/STESelf-Test emergency operation (no DALI operation)

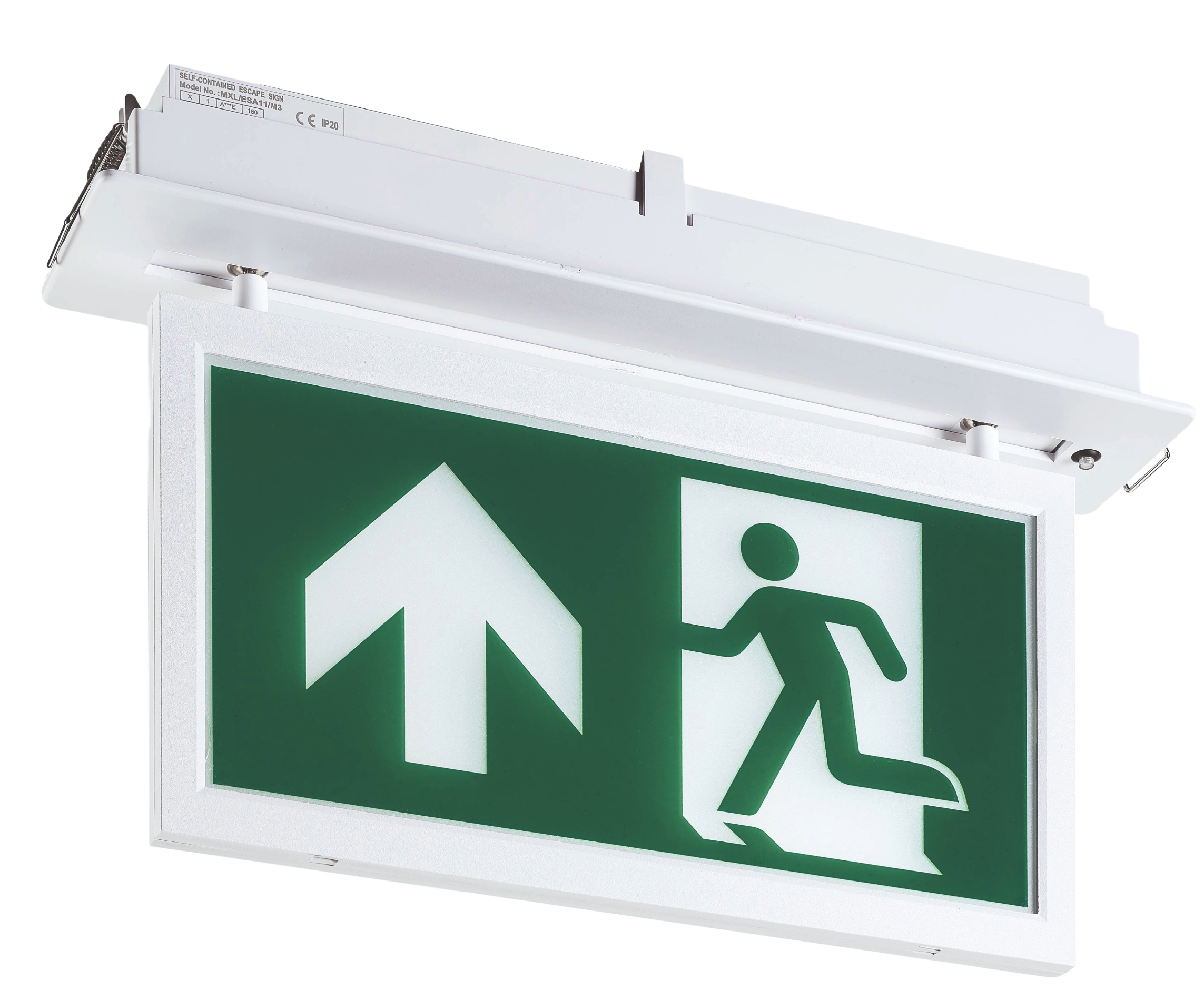

ESA08-09/RBRecessing bracket for recessed ceiling applications (For ESA08 and 09 versions)
ESA10-11/RBRecessing bracket for recessed ceiling applications (For ESA10 and 11 versions)
LEGENDS:MXL/25/LEG/AU/ISOISO format legend panel (25m viewing distance, up)
MXL/25/LEG/AD/ISOISO format legend panel (25m viewing distance, down)
MXL/25/LEG/AL/ISOISO format legend panel (25m viewing distance, left)
MXL/25/LEG/AR/ISOISO format legend panel (25m viewing distance, right)
MXL/30/LEG/AU/ISOISO format legend panel (30m viewing distance, up)
MXL/30/LEG/AD/ISOISO format legend panel (30m viewing distance, down)
MXL/30/LEG/AL/ISOISO format legend panel (30m viewing distance, left)
MXL/30/LEG/AR/ISOISO format legend panel (30m viewing distance, right)
MXL/25/LEG/AU/ECEC format legend panel (25m viewing distance, up)
MXL/25/LEG/AD/ECEC format legend panel (25m viewing distance, down)
MXL/25/LEG/AL/ECEC format legend panel (25m viewing distance, left)
MXL/25/LEG/AR/ECEC format legend panel (25m viewing distance, right)
MXL/30/LEG/AU/ECEC format legend panel (30m viewing distance, up)
MXL/30/LEG/AD/ECEC format legend panel (30m viewing distance, down)
MXL/30/LEG/AL/ECEC format legend panel (30m viewing distance, left)
MXL/30/LEG/AR/ECEC format legend panel (30m viewing distance, right)

Dimensions

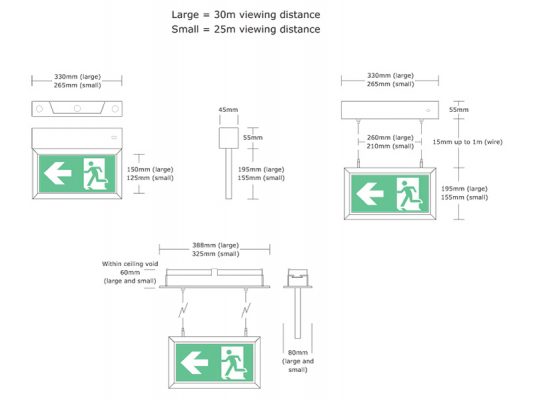

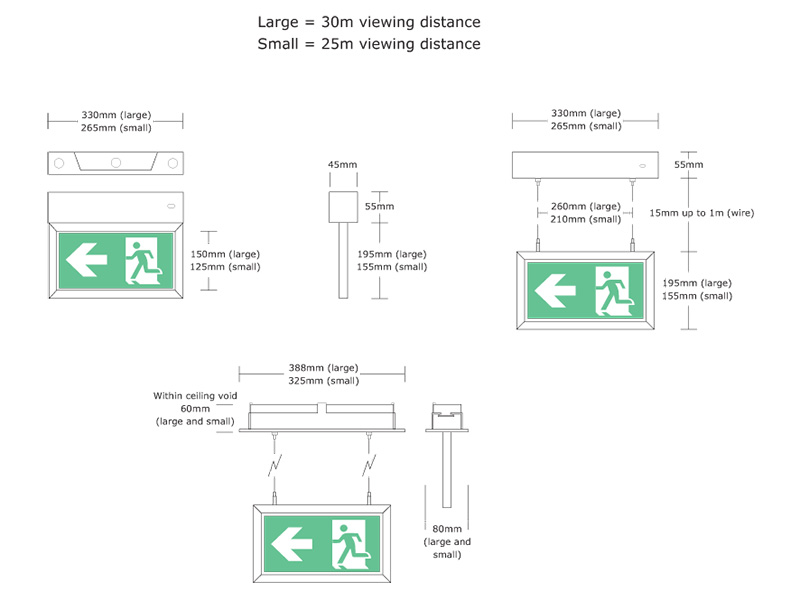

MexLite dimensioned drawings
