Miniature Open Area Downlights

(LDI Range)

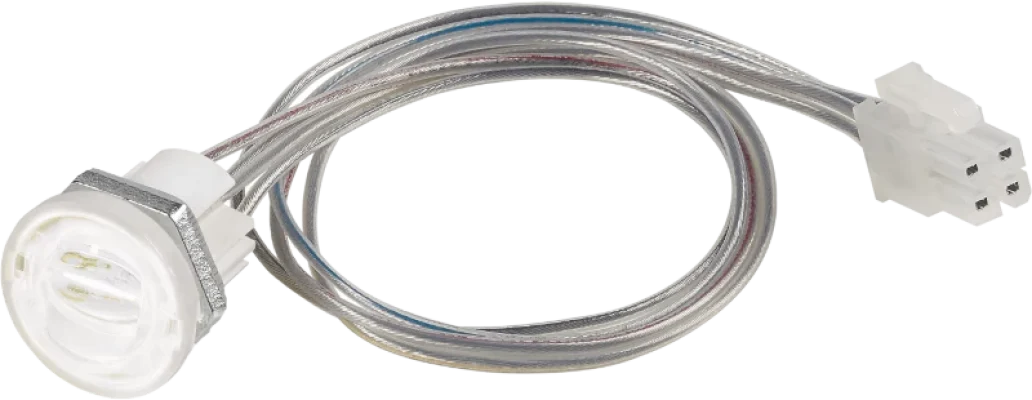

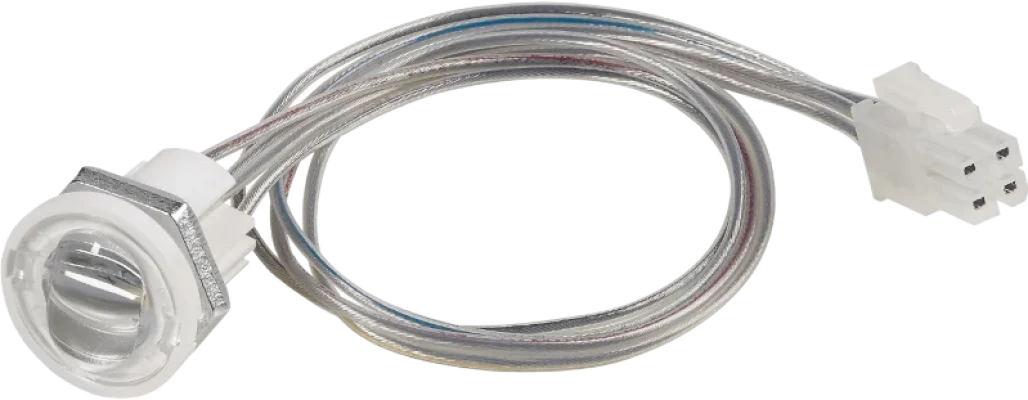

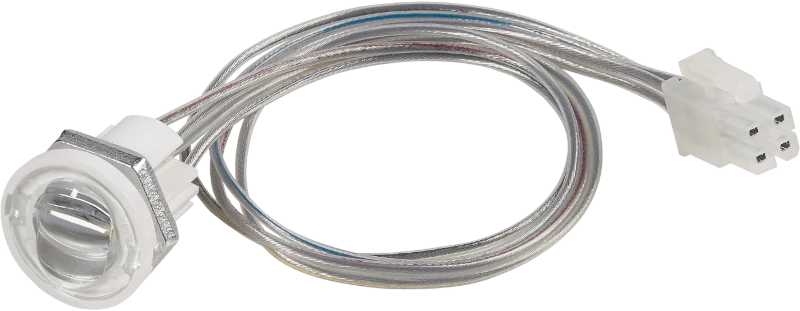

The LDl3/18 is a small and very discreet LED light pod with an injection moulded thermally conductive plastic body acting as a very effective heat sink and incorporating an 18mm thread and lock nut for simple installation.
NB: Requires 18.5mm clearance hole with access to the rear.

The LDl3/18 light pods (silver or white front bezel) offer two distribution types.

LDl3/18/105 (WIDE BEAM)
The LDl3/18/105 light pod offers 105 degree wide angle lens configuration ideal for illumination of open areas with mounting heights below 3.5m.

LDl3/18/C (‘CORRIDOR’ BEAM)
The LDl3/18/C light pod offers a dissymmetric lens providing a narrow beam across the width of a corridor and extremely wide (batwing) distribution along the length of the corridor.

The LDI3/18 light pods (silver or white front bezel) offer two distribution types.

LDI3/18/105 (WIDE BEAM)
The LDI3/18/105 light pod offers 105 degree wide angle lens configuration ideal for illumination of open areas with mounting heights below 3.5m.

LDI3/18/C (‘CORRIDOR’ BEAM)
The LDI3/18/C light pod offers a dissymmetric lens providing a narrow beam across the width of a corridor and extremely wide (batwing) distribution along the length of the corridor.

For emergency lighting applications the LDI3/18 light pods incorporate an integral green/red bi-colour indicator suitable for standard emergency or Self-Test/DALI emergency.
