IP65 LED Bulkhead/Exit Sign

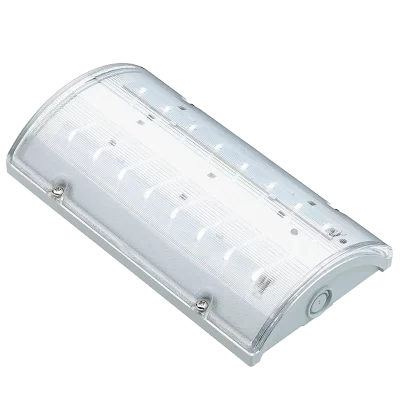

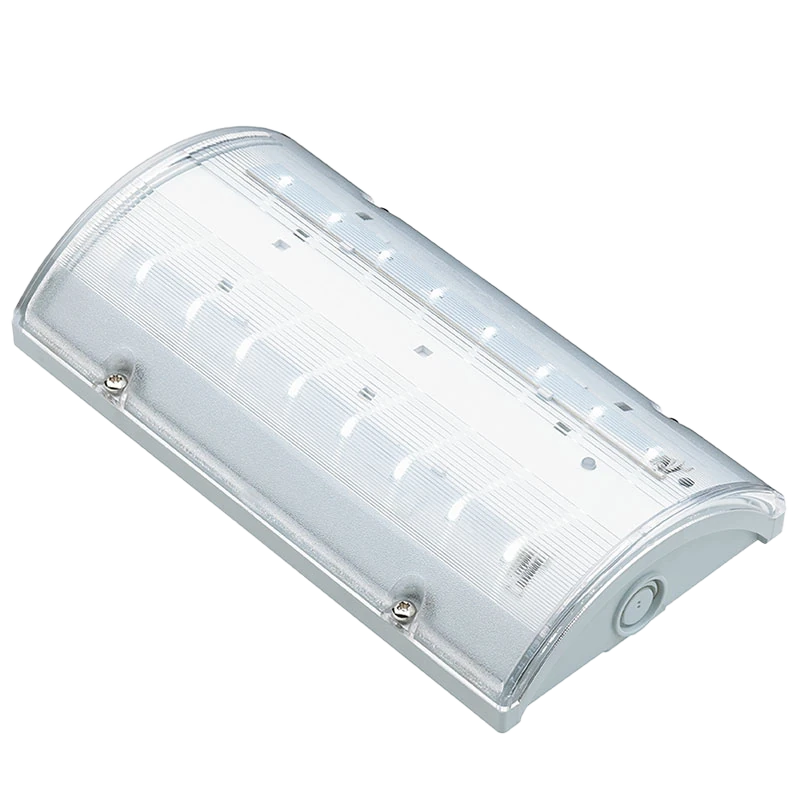

Neat and compact, the Brilas LED bulkhead utilises an IP65 rated polycarbonate base and lens specifically designed to maximise the distribution from the enclosed 16 high output white LEDs and appropriate drive circuit.

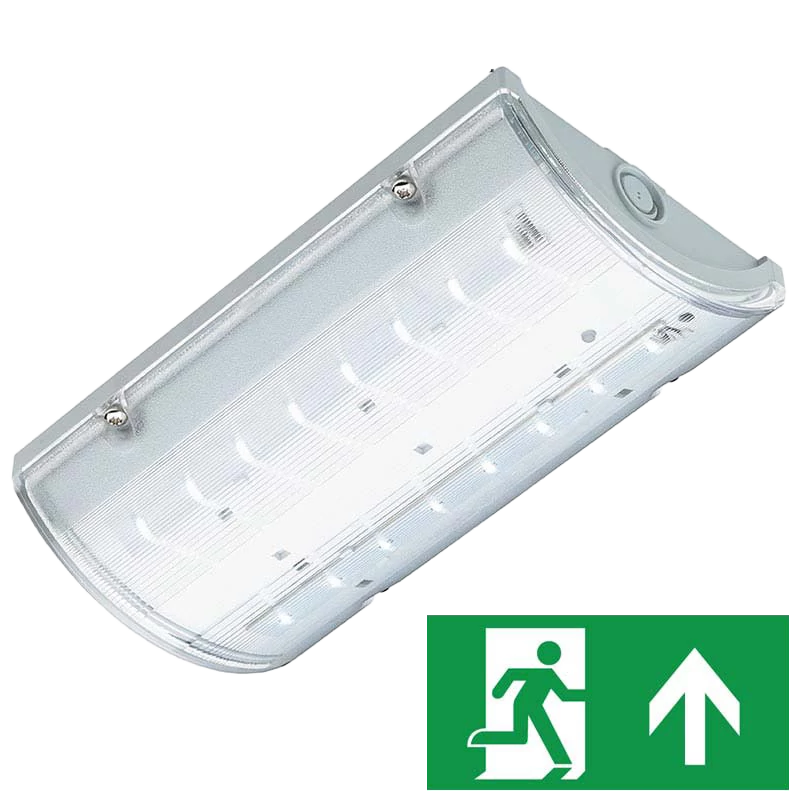

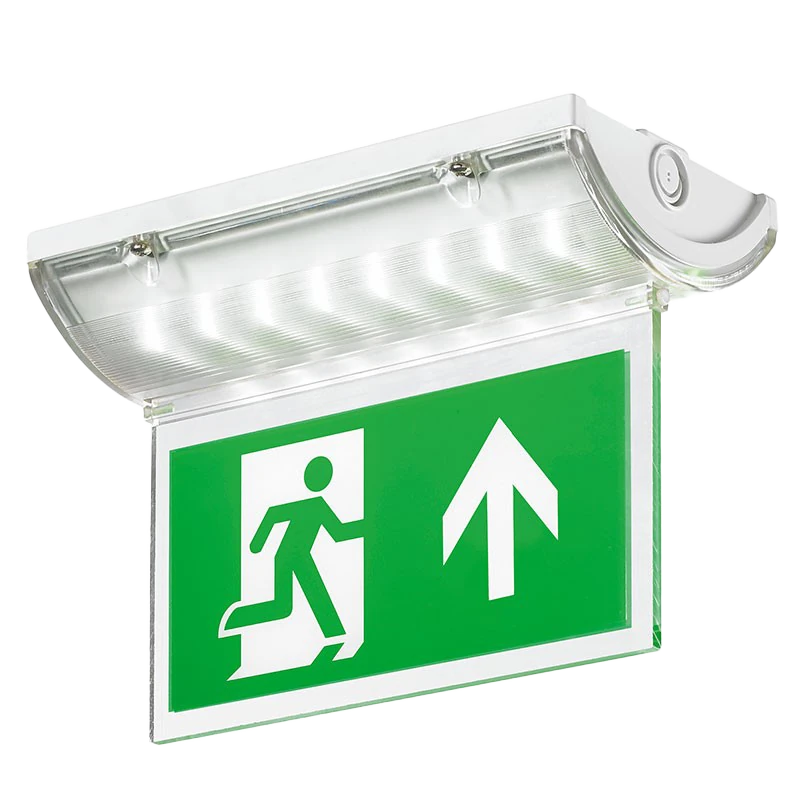

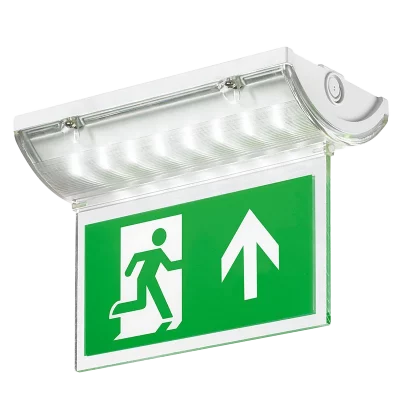

The Brilas is available with a ‘hanging blade’ exit sign legend panel or self-adhesive legend kits.

Brilas is available with DALI and self-test.

The attractively designed Brilas bulkhead offers over 150 Lumens LED output with a distribution to ensure maximum spacing between luminaires.

Brilas luminaires are available with mains only or Maintained emergency operation (non-Maintained operation achieved by excluding a switched live supply). All emergency versions provide 3 hour duration from integral high temperature Nickel Cadmium (NiCd) batteries. Maintained versions can be used for standard switched mains lighting but will automatically provide emergency lighting in the event of a complete loss of normal mains supply.

The benefits of the modern white low power LEDs include long life (typically 50,000+ hours), excellent energy efficiency (>100lm/W), low operating temperatures therefore improving the life of the internal batteries and good operation at low ambient temperatures.

Brilas luminaires can be equipped with SurePath BLE Bluetooth addressable gateway modules.

The luminaires have been tested and BSI Kitemark Certified to EN60598.2.22 and they are also Certified by United Arab Emirates Ministry of Interior Civil Defense GHQ.

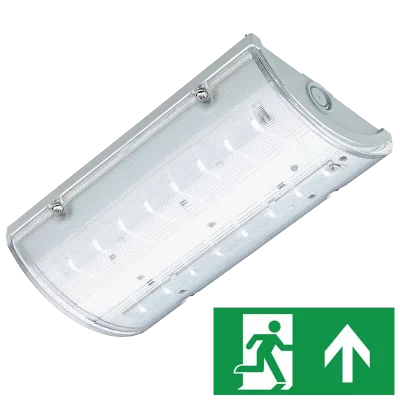

Brilas LED luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system.
