Twin Floods

MiniTS/MiniTF

Projector Luminaires

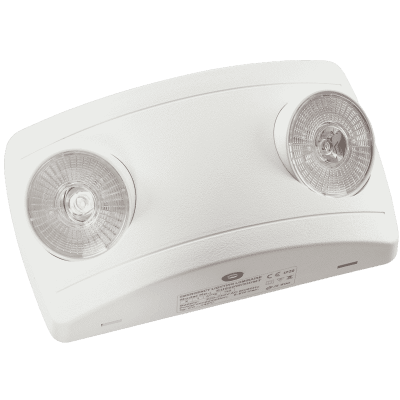

Available in white and black body versions, the versatile Mini Range offers the MiniTS 660N narrow beam TwinSpot and the MiniTF 660W wide beam TwinFlood LED emergency lighting projectors.

Simple and effective emergency lighting from attractive high intensity LED projectors.

More suitable for areas with aesthetic concerns than conventional twin projector floodlights the Mini Range is ideal for a wide range of applications requiring open area and escape lighting.

The 2 watt projector heads provide over 110 lumens per head and a clever adjustable narrow beam (MiniTS) or a general wide beam (MiniTF).

NB: Full photometry is available upon request.

The Mini Range units are supplied with high quality white LEDs and Nickel Metal Hydride (NiMH) batteries.

Datasheet
LDT Files
CE Declaration of Conformity
UKCA Declaration of Conformity
MiniTS-MiniTF-Projector-Luminaire-1-from-web
MiniTS-MiniTF-Projector-Luminaire-3-from-web
MiniTS-MiniTF-Projector-Luminaire-6-from-web
MiniTS-MiniTF-Projector-Luminaires-5-from-web
Installed-Shots-1lr-800px
Installed-mini-range-800px
MiniTS MiniTF - Projector Luminaire 7 - dimensioned-square

The Mini Range of projector luminaires are supplied as standard with maintained operation.

The heads are easily adjusted and make the units suitable for ceiling or wall mounting. The self-contained circuit provides charge healthy monitoring for the 2 x 3.6V 1.5Ah Nickel Metal Hydride (NiMH) batteries.

The twin 2 watt luminaires fully comply with the requirements of EN60598.2.22

PERFORMANCE
Full photometry (.LDT file) is available for both lenses.

Typical examples:
MiniTS/660N/M3 ceiling mounted at 2.5 metres can be spaced 14 metres apart to achieve 1 lux on a corridor centre line.

MiniTS/660N/M3 mounted within 2 metres of exit signs, call points or first aid points can be aimed to provide 5 lux.

MiniTF/660W/M3 ceiling mounted at 2.5 metres can be spaced 10 metres apart to achieve 0.5 lux in an open area.
