SPS Central Battery SystemSPS Central Battery System

SPS Static Inverter Central Battery Systems

SPS Static Inverter Central Battery System units provide a 230 VAC supply in the event of loss of the normal mains supply. SPS is designed to operate third party mains luminaires at full output as either maintained, switched maintained or non-maintained luminaires for 3 hours.

SPS features five models with maximum power output ranging from 99W to 574W.

Compact SPS units incorporate an inverter which provides and maintains the voltage of 230 VAC ±3% (50Hz) on all output circuits. These are either from the normal mains supply or, in the effect of a mains failure, the integral 2 x 12 volt 10 year Valve Regulated Lead Acid batteries.

SPS complies with the requirements of BS EN 50171 (central power supply systems) and BS EN 62034 (automatic test systems for battery powered emergency escape lighting).

Datasheet (PDF)
Register to download additional product data including LDT Files, Wiring Diagrams and Certificates of ConformityCLICK HERE



Description

All SPS systems are protected against extensive load and short circuit and the output circuits are continuously monitored and any failure is clearly identified on the front panel. As standard, SPS are equipped with a number of functions that can be programmed by means of the built-in www server and, optionally, a networking application.

Use of Modbus and BACnet protocols allows for the integration in to BMS (Building Management Systems). The compact design of the cabinets allows for discrete installation compared to traditional larger systems.

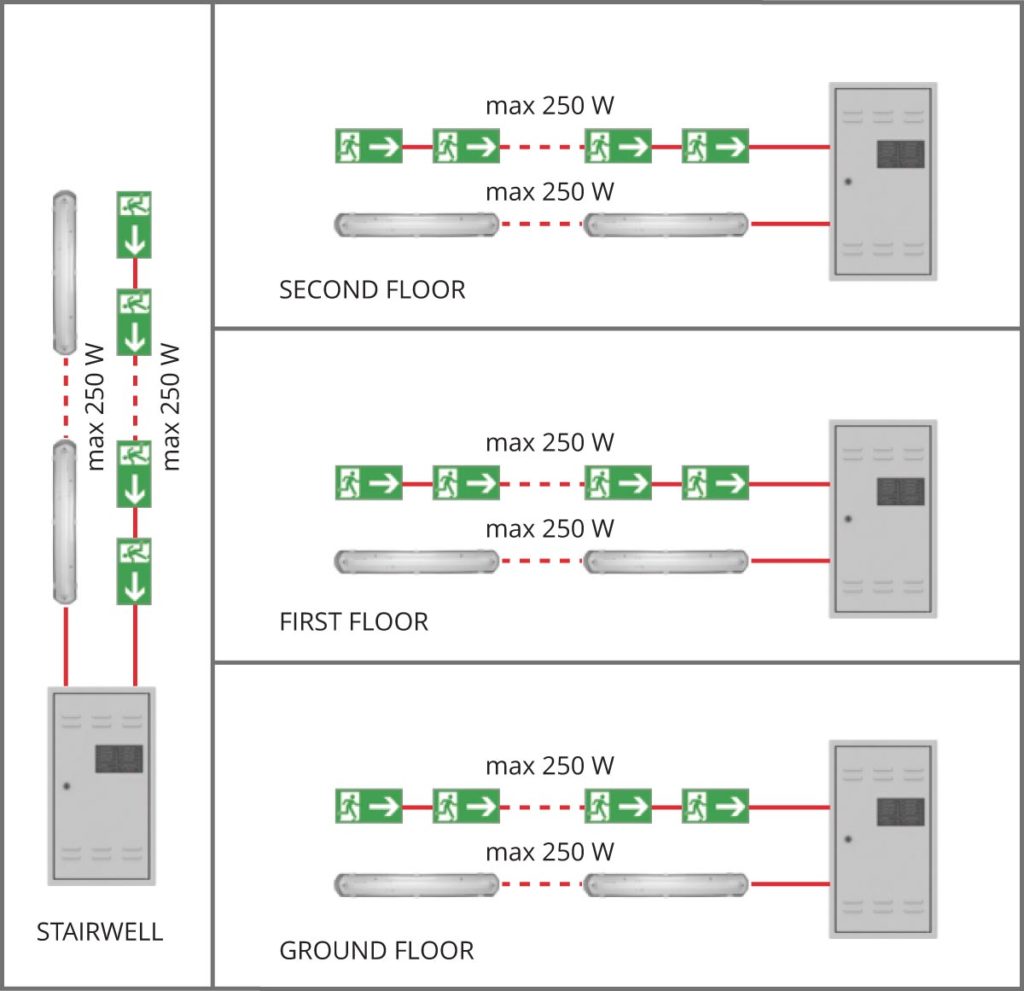

SPS group battery system

Technical Data


SPS 300
SPS 600
SPS 1000
SPS 1500
SPS 2000
SPS 300SPS 600SPS 1000SPS 1500SPS 2000
Supply voltage
Single phase 230V ±10%, 50/60Hz
Battery capacity
26Ah
55Ah
80Ah
120Ah
150Ah
Maximum power
99W
209W
303W
458W
574W
Number of circuits
6
6
12
12
12
Maximum circuit load
250W
250W
250W
250W
250W
Cable penetrators
17 x M20
17 x M20
17 x M20
25 x M20
25 x M20
Max length of circuits
200m (1.5mm²) / 300m (2.5mm²)
Weight (kg)
25.4
51.5
59.6
114.3
142.5
Dimensions (mm)
660 x 370 x 220
800 x 400 x 260
940 x 450 x 270
1200 x 490 x 310
1300 x 490 x 310

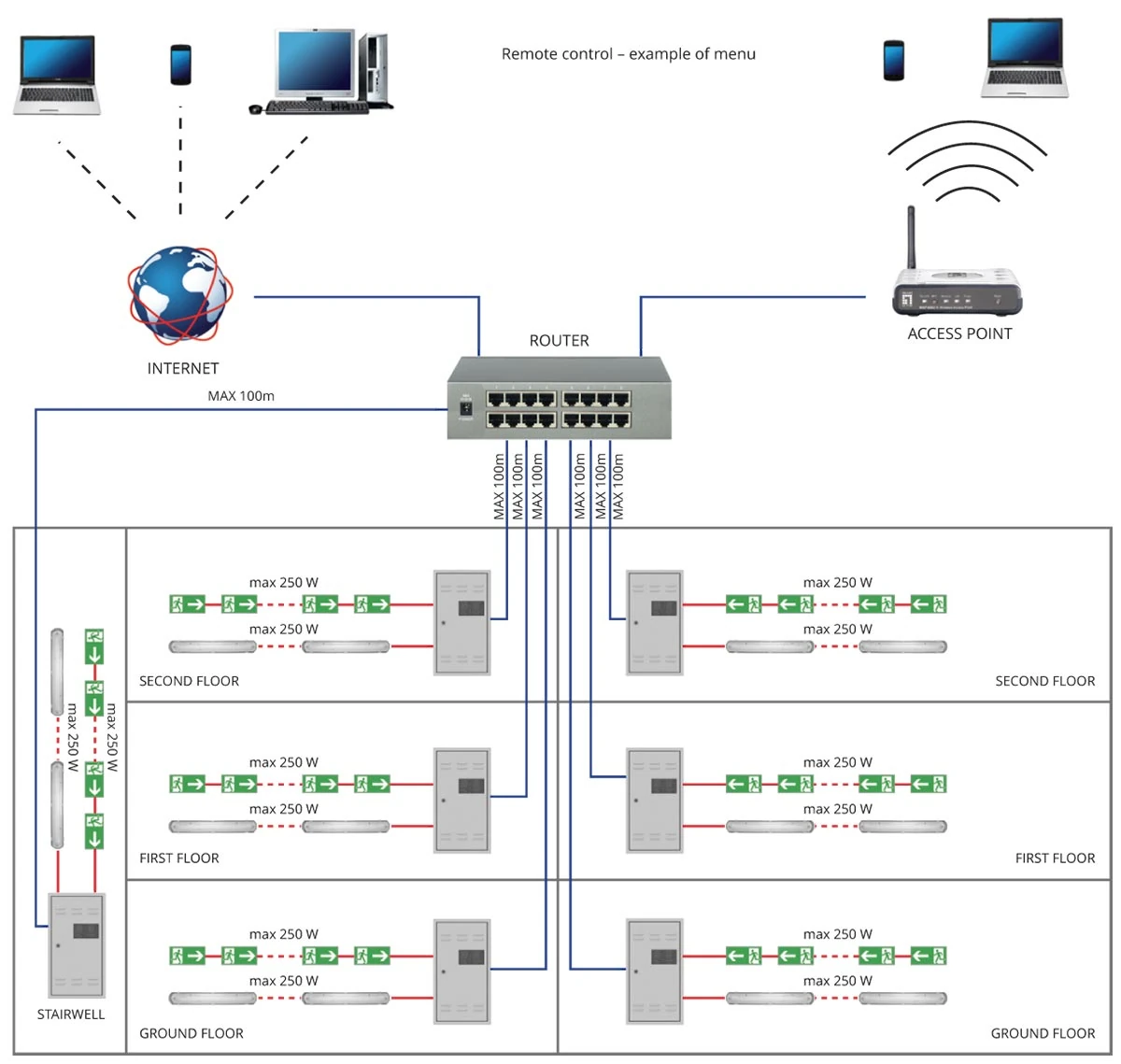

Networking

control unit - remote control

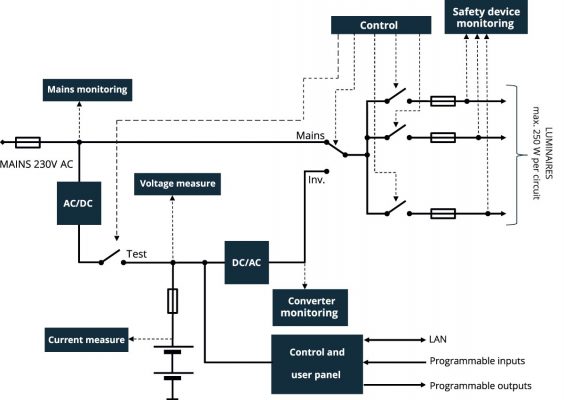

System Schematic

Block diagram of the emergency supply central system SPS
