PanelLED

Recessed LED Pannels

Available in two standard sizes and as mains only or in maintained emergency versions, PanelLED recessed LED luminaires provide aesthetic simplicity, high light output, low energy and long life from a very slim (<20mm) package.

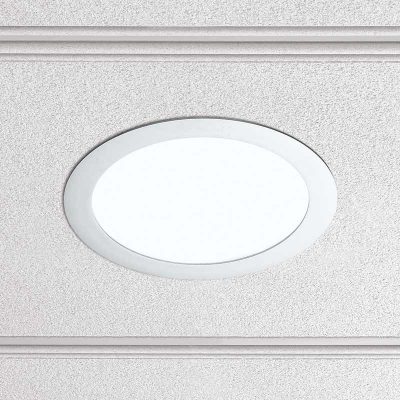

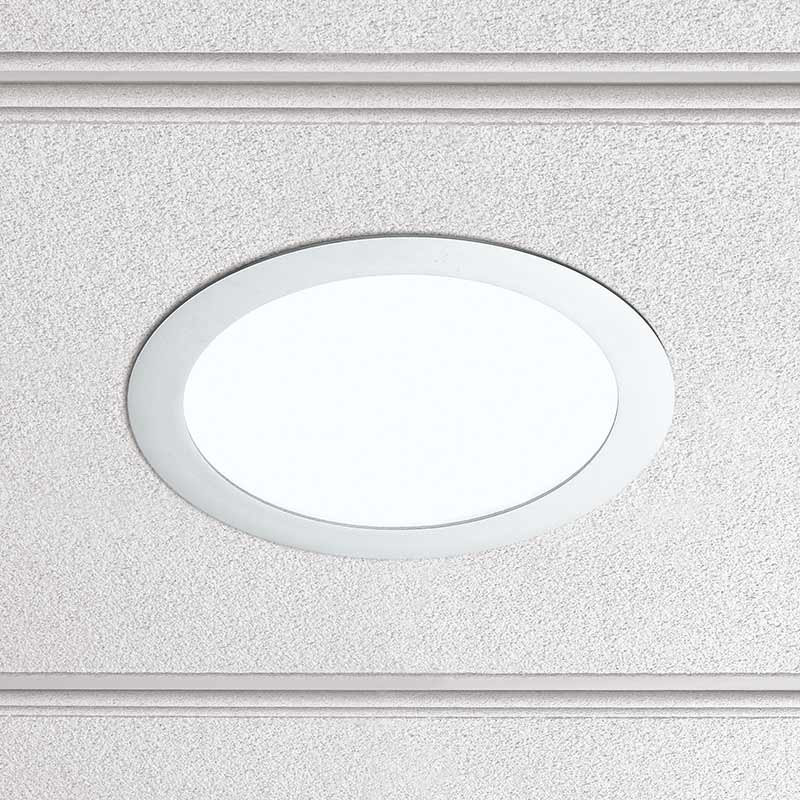

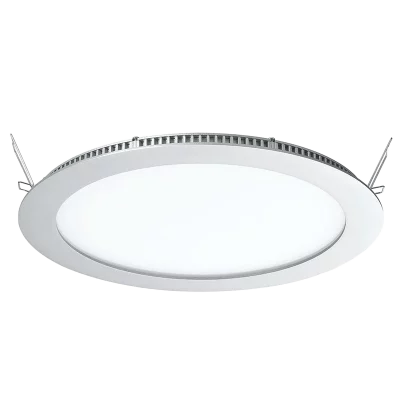

The PL240-13-R round PanelLED is 25mm thick and comes with spring fixings for recessing into tiles and plasterboard ceilings. The PL600-50-S square PanelLED is only 12mm thick and drops into a standard 600mm square tile opening in exposed-T ceilings.

Installation kits are also available to suspend the PL600 panel from wires or fit the panel direct to the surface of a ceiling or wall.

The PanelLED luminaires operate at 24 – 39 volts from 230 volt 50Hz supplies via small power factor corrected electronic drivers.

The front face of PanelLED luminaires operate with an even luminance distribution at a colour temperature of 4500K (white) and provide glare-free illumination on the working plane.

The PanelLED luminaires are available with mains only or Maintained emergency operation. All emergency versions provide 3 hour duration from remote high temperature Nickel Cadmium (NiCd) batteries. Maintained versions can be used for standard switched mains lighting but will automatically provide emergency lighting in the event of a complete loss of normal mains supply. (Non-Maintained operation is available by excluding a switched live supply).

The benefits of the modern white low power LEDs include long life (typically 50,000 hours+), excellent energy efficiency (>100lm/W), low operating temperatures therefore improving the life of the internal batteries and good operation at low ambient temperatures.

The luminaires fully comply to the requirements of EN60598.2.22

DALI / Self-Test Options:
The PanelLED luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system.
